First, the customer name:

Hunan Changfeng Enterprise Manufacturing Co., Ltd.

Second, the project profile:

1. Scope of supply: Engineering design, manufacture, installation and commissioning of the finalized mechanized conveyor line system.

2, project introduction

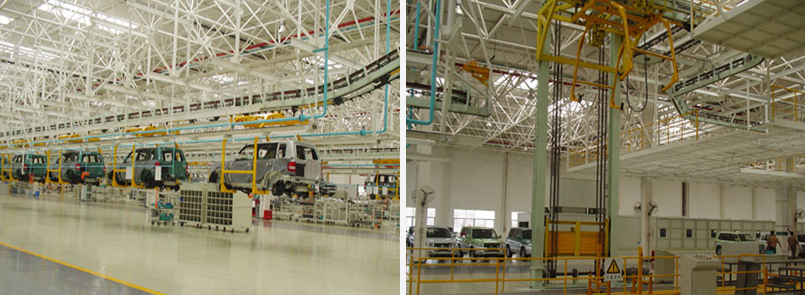

The system is mainly composed of the following three parts: the paint body line, the interior decoration line and the chassis line. After painting, the body conveyor line is mainly used for storing and transporting the painted body. The wire body adopts a sliding conveyor, and the rotating roller bed of the painting workshop sends the assembled body after the paint to the double-chain conveyor on the gallery. . The body is stored and transported on the porch, positioned on the tumbling roller, and the body is transferred to the rotating gurney by the hydraulic lifting fork transplanter, and the body is dropped to the inner decorative line by the fork type transplanting elevator. On the device. The inner decorative line adopts a type of conveyor, and the body of the paint is conveyed by the follow-up device to the body after the paint, and then the body behind the interior is sent to the chassis line. The chassis line includes: chassis assembly line, door assembly line, wheel assembly line, instrument panel distribution line, front suspension distribution line, rear suspension distribution line, engine distribution line, seat assembly line, final assembly line, and so on. The control system adopts five sets of sub-control system. The system controls the rear body conveyor line and realizes the transfer lifting device. The system 2 controls the interior door line and the instrument distribution line. The system three controls the chassis, tire, seat line and engine. And front and rear suspension line; system four controls the final assembly line, body transfer and OK line; system five controls the appearance inspection line.
