First, the customer name:

Dalian Haosen Ruide Equipment Manufacturing Co., Ltd.

Second, the project profile:

1. Scope of supply: Engineering design, manufacture, installation and commissioning of ATPU accumulating suspension conveyors, lifts and consoles.

2, project introduction

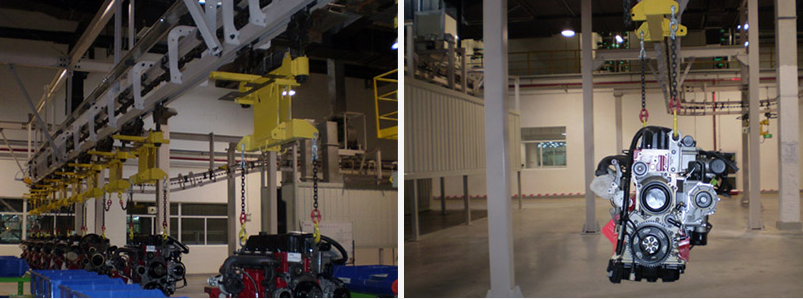

The project is an engine plant invested by Beiqi Foton Cummins, which mainly produces diesel engines. The integrated suspension conveyor system is used for continuous conveying and storage of workpieces. The system is divided into two parts. NO1 is responsible for transporting the two diesel engine assemblies to the hot test line. The system is driven by two variable frequency motor reducers to realize the mixing and unloading of the two engines. The air can be accumulated for 20 minutes. There are two belt lifts at the main assembly line, one for the 2.8L engine and the other for the 3.8L engine. There are two belt lifts at the hot test line, and the two engines are universal. NO2 transports the two diesel engine assemblies from the hot test line through the coating line to the accessory assembly. The system has six conveyor chains in the form of ground columns and aerial suspension. The functions of transportation, station operation, storage, station operation, cooling after drying and transportation are respectively completed. The system is equipped with four belt lifts for the upper and lower lines of the engine. The accumulative suspension conveyor control system accepts process information through industrial Ethernet, and transmits the system operation status and fault information to the host computer system transmitted via Ethernet. The system automatically reads the distinguishing information and signs of the two engines to achieve automatic differentiation. The function of the workpiece. The system reserves the PROFIBBUS interface of the RIFD to facilitate the expansion of the RIFD system in the future.
