Changfeng Automobile Yongzhou Assembly Accumulation Chain

First, the customer name:

Changfeng Motor Company

Second, the project profile:

1. Scope of supply: Engineering design, manufacture, installation and commissioning of the accumulative suspension conveyor system of the assembly line.

2, project introduction

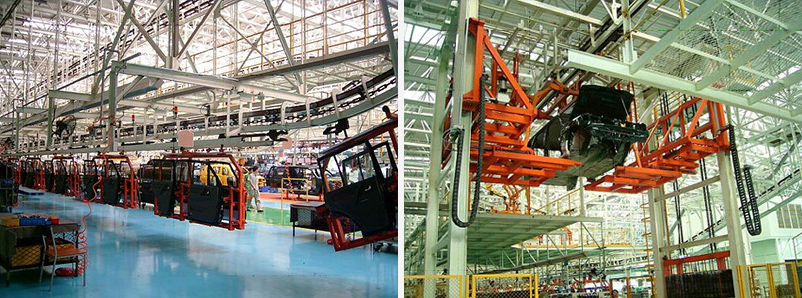

The new assembly workshop of Changfeng Automobile Company's Yongzhou base is newly built to meet the ever-expanding output. The annual output is 50,000 units, which are divided into chassis lines, interior lines, door lines and lifts and followers for up and down rotation. The undercarriage assembly conveyor system is composed of YTJ6 model conveyor. It consists of a fast chain and a slow chain. The process speed is 1-2.5m/min, the chain length is about 780m, the car accumulation length is 5300mm, and the station spacing is 6128mm. The car group adopts 6-car type and 27 sets of cars. The interior line adopts the YTJ6 model conveyor, which consists of a fast chain and a slow chain. The process speed is 1-2.5m/min, the chain length is about 500 meters, the car accumulation length is 5300mm, the station spacing is 6128mm, and the trolley group adopts 6 car type, 24 sets of cars. The door line adopts YTJ4 type conveyor. It consists of two fast chains and one slow chain. The process speed is 1-2.5m/min, the chain length is about 1200m, the car accumulation length is 3500mm, the station spacing is 4300mm, and the trolley group adopts 3 car type, 85 sets of cars.
